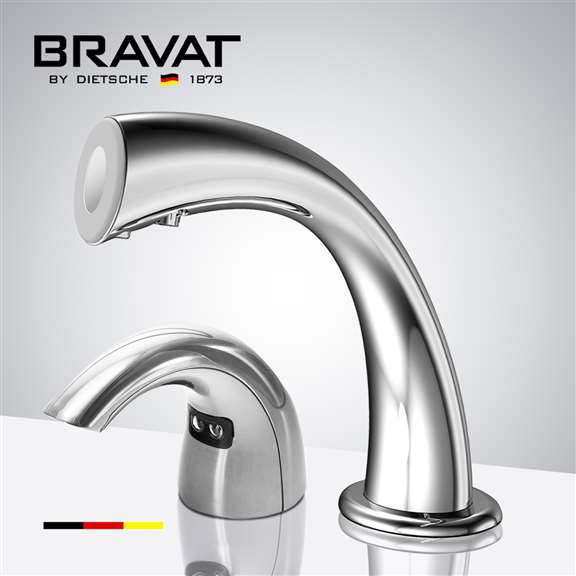

Bravat Commercial Automatic Electrical Sensor Faucet with Automatic Touchless Soap Dispenser in Chrome

Touchless Bathroom Faucet

Alternative Views:


Our Price: $1,570.00


Free Shipping
Product Code: BRAVAT-SFSD
Qty:

Description Technical Specs


Bravat Commercial Automatic Electrical Sensor Faucet with Automatic Touchless Soap Dispenser in Chrome

Bravat Commercial Automatic Aqua Touchless Faucet

Bravat Touchless Bathroom Faucets Specifications

  • Diameter of inlet pipe: DN15
  • Diameter of the outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56
  • Battery: 4 x 'AA' size cells
  • Operational water pressure range: 0.05 - 0.6MPa
  • Water supply pipe size: DN15

Sensor Activated Faucet Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicator for power-up, low battery, and solenoid function.
  • The meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5-year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
FontanaShowers® Product Warranty Information FontanaShowers Product Warranty

Features
  • The Bravat Sensor Activated Touchless Faucet


      • Sensor faucet complete motion detection operation.
      • Sensitive Sensor with Infrared AI Smart-Chip
      • Factory set to 30-second Auto Shutoff (can be adjusted).
      • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
      • Solid Brass Construction, Polished Chrome Finish
      • Easy to Install - Instructions Included
      • Water-resistant solenoid enclosure
      • Advanced energy-saving design for long-lasting battery life
      • Comes complete with Hoses & Accessories
      • Power Supply: AC110V And DC6V (batteries not included)
      • AC/DC power option.
      • ADA Compliant
      • Easily can be installed in new or retrofit applications.
      • Usage: Commercial / Residential
