Bravat Commercial Automatic Brushed Nickel Hands Free Sensor Faucets
Touchless Bathroom Faucet

Alternative Views:
Our Price: $579.00


Free Shipping
Product Code: FS-D637BN
Qty:

Description Technical Specs

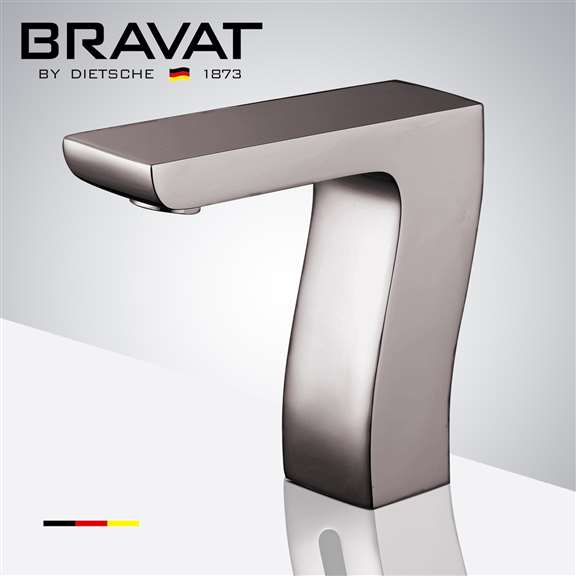

Bravat Commercial Automatic Brushed Nickel Hands Free Sensor Faucet

Bravat Commercial Automatic Hands Free Sensor Faucets
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V, AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW, <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Sensor Activated Faucet Special Features :

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
  • Intelligent : with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Complaint
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
Installation Instructions for Lima Windowless Capacitive Touch Commercial Automatic Motion Sensor Faucet

  • Features
    • Sensor faucet complete motion detection operation.
    • Sensitive Sensor with Infrared AI Smart-Chip
    • Factory set to 30-second Auto Shutoff (can be adjusted).
    • Water Pressure : 0.5 - 7.0 KGS/cm, 10 - 125 psi
    • Solid Brass Construction, Brushed Nickel
    • Easy to Install - Instructions Included
    • Water resistant solenoid enclosure
    • Advanced energy saving design for long lasting battery life
    • Comes complete with Hoses & Accessories
    • Power Supply : AC110V And DC6V (batteries not included)
    • AC/DC power option.
    • ADA Compliant.
    • Easily can be installed in new or retrofit applications.
    • Flow Rate : 1.8 GPM
    • Usage: Commercial / Residential
    • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
    		•
