Home > Bravat Touchless Faucets >

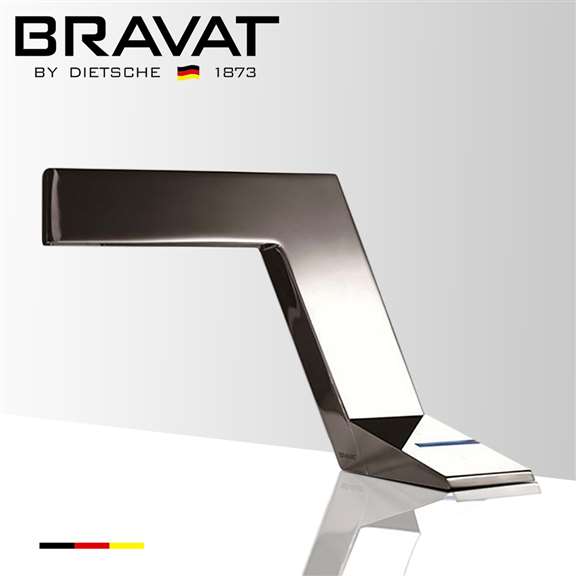

Bravat Commercial Electronic Faucet
Touchless Bathroom Faucet

Alternative Views:
Our Price: $882.00


Free Shipping
Product Code: FS-D650K
Qty:

Description Technical Specs


Bravat Commercial Electronic FaucetBravat Commercial Electronic Faucet

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Bravat Faucet Specifications

Degree of protection by enclosure <> Battery Operational water pressure range
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Faucet Height: 178mm
  • Spout length: 170mm
  • Spout Height: 158mm
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
  • Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
  • 1P56 Water 0.05 - 0.6MPa
  • Water supply pipe size: DN15

Bravat Electronic Faucet Features

  • Water Conserving
  • AC/DC Operation
  • Battery low LED light indicator
  • Advanced circuit design saves electricity and water
  • Advanced energy saving design for long lasting battery life.
  • Three-year battery life based on 3,000 hand washes per month
  • Long life durable body
  • Power Supply Options
  • ADA Complaint
  • Vandal-Resistant Aerator
  • Highly-Polished, Chrome Plated Cast Brass Bodies
  • Low Battery Indicator Light
  • In-Line Filter
      • Electronic Automatic Faucet Special Features
      • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
      • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
      • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
      • Meaning of the codes are described in the installation instructions.
      • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
      • Faucet can be mounted to any sink surface.
      • ADA Compliant.
      • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.

    FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
    Installation Instructions for Bravat Commercial Electronic Faucet
    Features
      • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
      • Solid Brass Construction, Polished Chrome Finish
      • Easy to Install - Instructions Included
      • Water resistant solenoid enclosure
      • Comes complete with Hoses & Accessories
      • Power Supply: AC110V And DC6V (batteries not included)
      • AC/DC power option.
      • ADA Compliant
      • Easily can be installed in new or retrofit applications.
      • Usage: Commercial / Residential
      • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
